RecyclerView Antipatterns

RecyclerView, in Android development, is a very useful first party library which replaces traditional ListView. Over my career, I have faced a lot of anti patterns of RecyclerView and its adapter concept. Having recently reviewed a piece of code in relation to that and gone through a detailed explanation with one of my juniors, I decided to share this knowledge since I believe it's a concept every Android developer should understand.

Stone Age

To grasp what's RecyclerView is doing underneath the hood, we have to first understand how to implement this without it. You probably might have seen this code if you have ever written something that extends BaseAdapter. For example, a custom Spinner Adapter.  Let's look at this implementation of Adapter that shows a single TextView.

class ListViewAdapter(context: Context) : ArrayAdapter<Data>(context, R.layout.item) {

    //..Other overrides

    override fun getView(position: Int, convertView: View?, parent: ViewGroup): View {
        val itemAtPosition = getItem(position)!!
        //Inflate
        var itemView = LayoutInflater.from(parent.context).inflate(R.layout.item, parent, false)

        //Bind
        val tvText = itemView!!.findViewById<TextView>(R.id.textView)
        tvText.text = itemAtPosition.text

        return itemView
    }
}

This is a working solution, but do you know what's wrong here? We are inflating the view every single time. This has a huge performance impact when scrolling the ListView. To optimize this, we have to look into code of Adapter interface, specifically the getView method. You will see that convertView parameter is nullable, and the comment states:

The old view to reuse, if possible. Note: You should check that this view is non-null and of an appropriate type before using. If it is not possible to convert this view to display the correct data, this method can create a new view.

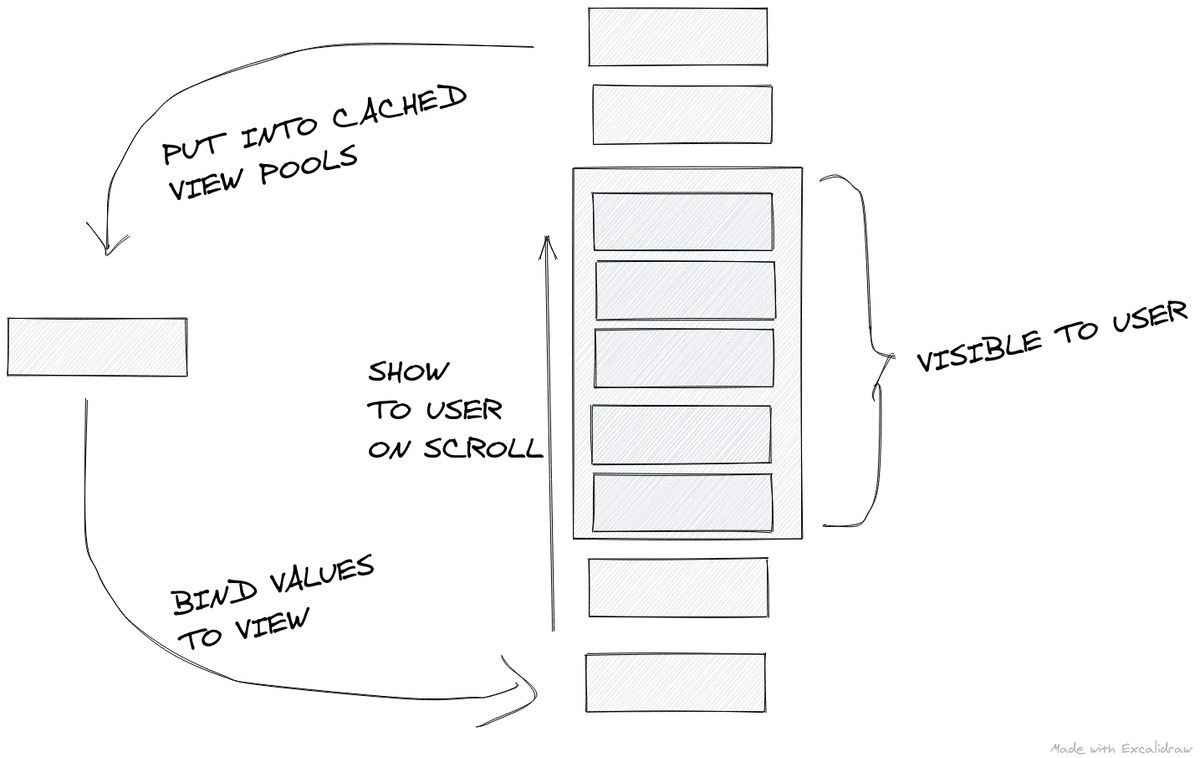

It said "the old view to reuse".  The adapter reuse the view that are outside of user screen instead of inflating/or recreating the whole view. This results in a smoother scrolling experience for the users.

We want to optimize our code as well to preserve this recycling behavior of Adapter. We do this by checking if the convertView is null or not, and only inflate the view from scratch if it's null. If it's not null, that means we're receiving a recycled view and there isn't a need to inflate it again.

val itemView : View

if (convertView == null) {
    itemView = LayoutInflater.from(parent.context).inflate(R.layout.item, parent, false)
} else {
    itemView = convertView
}

We now only inflate if the view is not recycled, that is, on creating it for the first time. A full code would be:

override fun getView(position: Int, convertView: View?, parent: ViewGroup): View {
    val itemAtPosition = getItem(position)!!
    //Inflate
    val itemView : View

    if (convertView == null) {
        itemView = LayoutInflater.from(parent.context).inflate(R.layout.item, parent, false)
    } else {
        itemView
    }

    //Bind
    val tvText = itemView.findViewById<TextView>(R.id.textView)
    tvText.text = itemAtPosition.text

    return itemView
}

Wait a sec, we can optimize it further. Currently, we're still doing findViewById for every single item. We can do better than this, let's execute this piece of code only the first time after view inflation. This is where we use ViewHolder  pattern. We first create a class that hold the references to the views.

inner class ViewHolder {
  lateinit var tvText : TextView
}

We will then use setTag function of View; On first time creation, we will create a new ViewHolder object, and assign the item view's tag to this ViewHolder. On the next time the view is being reused, we will just pull this tag back out and type cast it into our ViewHolder. Voalia, now we are doing findViewById only once on first time inflation.

override fun getView(position: Int, convertView: View?, parent: ViewGroup): View {
    val itemAtPosition = getItem(position)!!

    //Inflate
    val viewHolder : ViewHolder
    val itemView : View

    if (convertView == null) {
        itemView = LayoutInflater.from(parent.context).inflate(R.layout.item, parent, false)

        viewHolder = ViewHolder()
        viewHolder.tvText = itemView.findViewById(R.id.textView)

        itemView.tag  = viewHolder
    } else {
        itemView = convertView
        viewHolder = itemView.tag as ListViewAdapter.ViewHolder
    }

    viewHolder.tvText.text = itemAtPosition.text

    return itemView
}

We can make the code more error prone by passing the findViewById logic into ViewHolder and making our tvText an immutable variable.

inner class ViewHolder(val itemView: View) {
    val tvText : TextView = itemView.findViewById(R.id.textView)
}

//In getView, use as follows:
viewHolder = ViewHolder(itemView)

This way, our code won't throw an error if we forget to assign tvText. Now we got an optimized Adapter that recycle the view and prevent inflation, which also reuse the view without executing findViewById again and again. But it's wasn't really easy to write all these codes just to get the optimization benefit. Imagine every time we want to have a ListView, having to rewrite this logic over and over again, this would quickly become a boilerplate. So, we want to write an abstract class to make this easier for us.

abstract class AbstractListViewAdapter<T: Any,VH : AbstractListViewAdapter.ViewHolder>(
    context: Context,
    resId: Int
) : ArrayAdapter<T>(context, resId) {

    abstract class ViewHolder(val itemView: View)

    override fun getView(position: Int, convertView: View?, parent: ViewGroup): View {
        val itemAtPosition = getItem(position)!!

        //Inflate
        val viewHolder: VH
        val itemView: View

        if (convertView == null) {
            viewHolder = onCreateViewHolder(parent, getItemViewType(position))
            itemView = viewHolder.itemView
            itemView.tag = viewHolder
        } else {
            itemView = convertView
            viewHolder = itemView.tag as VH
        }

        onBindViewHolder(viewHolder, position)

        return itemView
    }

    abstract fun onBindViewHolder(viewHolder: VH, position: Int)

    abstract fun onCreateViewHolder(parent: ViewGroup, viewType: Int): VH

}

This abstract class that we wrote is just a small fraction of what RecyclerView.Adapter does. RecyclerView handle all of these boilerplate code we're having to write for ListView adapters. Of course, RecyclerView does more than that, but we are not going to explore those today.

The Bronze Age

If we know this concept, then I can go on to explain some of the anti patterns that I've seen. The first one is where we are not recycling the view fully. For example let's take a look into this code:

class RecyclerViewAdapter(
    private val onItemClick : (Data) -> Unit
) : RecyclerView.Adapter<RecyclerViewAdapter.MyViewHolder>() {

    //..Other overrides
    private val itemList: List<Data> = //...DO STUFFS

    inner class MyViewHolder(val itemView: View) : RecyclerView.ViewHolder(itemView) {
        val tvText : TextView = itemView.findViewById(R.id.textView)
    }

    override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): MyViewHolder {
        val itemView = LayoutInflater.from(parent.context).inflate(R.layout.item, parent, false)
        return MyViewHolder(itemView)
    }

    override fun onBindViewHolder(holder: MyViewHolder, position: Int) {
        val itemAtPosition = itemList[position]
        holder.tvText.text = itemAtPosition.text
        holder.tvText.setOnClickListener {
            onItemClick(itemAtPosition)
        }
    }

}

Notice anything that we could recycle here as well? The answer is the OnClickListener that is being used. Currently, we're setting a new listener every single time, What if we could transfer it inside ViewHolder initialization or onto onCreateView, then it will only be executed one time, and will be recycled for later use. Instead of returning the whole data class back onto the callback, we will return only the position of ViewHolder. For the logic to pull the data out from the position, we will offload it onto the adapter.

inner class MyViewHolder(
    itemView: View,
    private val onTextViewTextClicked: (position: Int) -> Unit
) : RecyclerView.ViewHolder(itemView) {
    val tvText: TextView = itemView.findViewById(R.id.textView)

    init {
        tvText.setOnClickListener {
            onTextViewTextClicked(adapterPosition)
        }
    }

}

Instead of exposing the itemList to the caller and letting the caller uses with itemList[index], we will encapsulate the logic inside the adapter. Our adapter has reference to the item list, which we can use to convert the adapterPosition into the data at that position. With this we will expose another callback and return the data back onto the caller.

//onItemClick is a parameter in Adapter constructor
private val onTextViewTextClicked = { position: Int ->
    onItemClick.invoke(itemList[position])
}

override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): MyViewHolder {
    val itemView = LayoutInflater.from(parent.context).inflate(R.layout.item, parent, false)
    return MyViewHolder(itemView, onTextViewTextClicked)
}

This way, our OnItemClickListener is being recycled and the logic is still encapsulated inside the adapter.

Second anti-pattern is having logic inside the adapter. The adapter and ViewHolder should do the job of showing ViewHolders to the user and not anything else. The logic should be offloaded to the caller. The following would be an example of a code that have logic inside of adapter

override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): MyViewHolder {
    val itemView = LayoutInflater.from(parent.context).inflate(R.layout.item, parent, false)
    return MyViewHolder(
        itemView = itemView,
        onTextViewTextClicked = { position: Int ->
            val itemAtIndex = itemList[position]
            val intent = getDetailActivityIntent(itemAtIndex)
            parent.context.startActivity(intent)
        })
}

Say in the future, we want to reuse the same UI, but with different interaction on clicking an item. We can't reuse our adapter anymore since the logic is coupled inside of it. And that is why we should be one step ahead, and exposes these with a callback/an interface. If we're using multiple interfaces/callbacks for multiple view, we can write a more descriptive code so whoever manage your code later thanks you:

//Which is more descriptive
//Which one shows you all the possible interactions at a first glance?

class RecyclerViewAdapter(
    private val onAddClick: (itemAtIndex: Data) -> Unit,
    private val onRemoveClick: (itemAtIndex: Data) -> Unit,
    private val onItemClick: (itemAtIndex: Data) -> Unit
)

class RecyclerViewAdapter(
    private val onItemViewClick: (clickedViewId: Int, itemAtIndex: Data) -> Unit
)

The Golden Age

Third anti pattern is the changing the state of the view directly inside the ViewHolder. For example, let's look into a ViewHolder that changes the state of a CheckBox

override fun onBindViewHolder(holder: MyViewHolder, position: Int) {
    //Note: checkbox clickable is set to false to control the logic ourselves
    holder.itemView.setOnClickListener {
        //Toggle
        holder.checkBox.isChecked = holder.checkBox.isChecked.not()
    }
}

If we do this, and populate our list with say 100 items, then check first two or three items and scroll down, we will see that other positions are checked even though we have never clicked that position. This is once again because view are being recycled. When a view with a checked state get recycled, it stays that way. Thus, We must always remember to rebind the state of the view in onBindViewHolder. And we solve this by adding an isChecked variable set to false on our data class

data class Data(
    val text: String,
    val isChecked: Boolean = false
)

In our onBind method, we rebind this value

override fun onBindViewHolder(holder: MyViewHolder, position: Int) {
    holder.checkBox.isChecked = itemList[position].isChecked
    holder.itemView.setOnClickListener {
        holder.checkBox.isChecked = holder.checkBox.isChecked.not()
    }
}

Let's test again, populate data, we checked some, scroll down, it seems fine. But when we scroll back up, all of our checked state are gone! This is because the isChecked inside the data class never changes, and it stays as false. When we scroll the RecyclerView, onBind method is executed to rebind data back into recycled view, and here, the checked state got replaced with false. To solve this, we changed our adapter to this code

override fun onBindViewHolder(holder: MyViewHolder, position: Int) {
    val itemAtPosition = itemList[position]
    holder.checkBox.isChecked = itemAtPosition.isChecked

    holder.itemView.setOnClickListener {
        itemList[position] = itemAtPosition.copy(
            isChecked = itemAtPosition.isChecked.not()
        )
        notifyItemChanged(position)
    }

}

This could solves the issue of recycled states. We then added a database to our app and when user click on "Save" Button, we will persist which items are  checked onto database, so we make our itemList a public variable so that other class can access it, for example, fragment calling  saveToDb(adapter.itemList) on pressing Save. And then user wanted a function to unselect and select all at once. So we add two more functions: unSelectAll and selectAll inside adapter.

fun unselectAll() {
    itemList.map {  data->
        data.copy(isChecked = false)
    }
    notifyDataSetChanged()
}

fun selectAll() {
    itemList.map { data ->
        data.copy(isChecked = true)
    }
    notifyDataSetChanged()
}

We will then improve the logic by notifying only if the state is different

fun unselectAll() {
    itemList.mapIndexed { position, data ->
        if (data.isChecked) {
            notifyItemChanged(position)
            data.copy(isChecked = false)
        }
    }
}

fun selectAll() {
    itemList.mapIndexed { position, data ->
        if (!data.isChecked) {
            notifyItemChanged(position)
            data.copy(isChecked = true)
        }
    }
}

If we look at our adapter code now, you would see that it's starting to do too much. What if we add pagination that goes both way, what if we later add ability to remove an item/hide an item and much much more? Adapter job should be to bind ViewHolder, and not to control the state of the data. Moreover, our bindView is now holding logics too! Remember, we should be making our adapter as abstract as possible. One way to abstract this is to offload these select, unselect, add, remove whatever logic onto our presenter/ViewModel, and make the adapter only accept a fresh list every time the callers want to update the items. After refactoring, our adapter now looks like the code below, it's reusable, it doesn't hold any logic, itemList is set to immutable list to prevent changing state inside of it. The only way to update the state is to pass a new fresh list.

class RecyclerViewAdapter(
    val onCheckToggled: (position: Int, itemAtPosition: Data) -> Unit
) : RecyclerView.Adapter<RecyclerViewAdapter.MyViewHolder>() {

    //..Other overrides
    private var itemList: List<Data> = listOf<Data>()

    fun submitList(itemList: List<Data>) {
        this.itemList = itemList
        notifyDataSetChanged()
    }

    inner class MyViewHolder(
        itemView: View,
        onItemClick: (position: Int) -> Unit
    ) : RecyclerView.ViewHolder(itemView) {

        val checkBox: CheckBox = itemView.findViewById(R.id.checkBox)

        init {
            checkBox.setOnClickListener {
                onItemClick(adapterPosition)
            }
        }
    }

    override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): MyViewHolder {
        val itemView = LayoutInflater.from(parent.context).inflate(R.layout.item, parent, false)
        return MyViewHolder(
            itemView = itemView,
            onItemClick = { position ->
                val itemAtPosition = itemList[position]
                this.onCheckToggled(position, itemAtPosition)
            }
        )
    }

    override fun onBindViewHolder(holder: MyViewHolder, position: Int) {
        val itemAtPosition = itemList[position]
        holder.checkBox.isChecked = itemAtPosition.isChecked
    }

}

But now our adapter is not notifying item changes well enough. We don't want to rebind the whole list every time a position is updated. What if we we could differentiate when to notify for addition, removal, changed.

fun submitList(newList: List<Data>) {
    val oldList = this.itemList

    val maxSize = Math.max(newList.size, oldList.size)
    for (index in 0..maxSize) {
        val newData = newList.getOrNull(index)
        val oldData = oldList.getOrNull(index)

        if (newData == null) {
            notifyItemRemoved(index)
            return
        }

        if (oldData == null) {
            notifyItemInserted(index)
            return
        }

        if (newData != oldData) {
            notifyItemChanged(index)
            return
        }
    }
}

What I have wrote is just a very simple diffing method. In reality, we have to take into consideration of cases where the same item is moved to another position because a new item is added in between. The implementation above is also inefficient because we are diffing inside main thread, if we have 100 items, that means we are looping 100 times in the main thread.

To solve this boilerplate and to make diffing easier, ListAdapter came into play, ListAdapter is not an adapter for ListView, but a rather an extension of RecylerView.Adapter. ListAdapter constructor either accept DiffUtil.ItemCallBack or a AsyncDifferConfig. For most case, passing the former one will be enough. In our case,

class RecyclerViewAdapter(
    val onCheckToggled: (position: Int, itemAtPosition: Data) -> Unit
) : ListAdapter<Data, RecyclerViewAdapter.MyViewHolder>(
     object: DiffUtil.ItemCallback<Data>() {

        override fun areItemsTheSame(oldItem: Data, newItem: Data): Boolean {
            return oldItem.id == newItem.id
        }

        override fun areContentsTheSame(oldItem: Data, newItem: Data): Boolean {
            return oldItem == newItem
        }

    }
)

If the areItemsTheSame return true, i will proceed to check with areContentsTheSame. If the item is the same and the content is same, that means it's not changed. If the item is same and the content is different, it means the item is changed. However if the item is different, it could be one the followings: added, removed, or position is changed. It hides all of these diffing method underneath the hood. Plus, all of these diffing is done in a background thread. Just submit the new list into submitList and it will handle all the boilerplate logic for you. You can check the diffing logic inside AsyncListDiffer if you're interested. In most cases, try to use ListAdapter more as it enforces you to keep your state inside your ViewModel/Presenter. Plus, you get the advantage of letting the library do all the work for you.

I hope by now, you have a more broader understanding of how these APIs has been developed over time starting from an ArrayAdapter into ListAdapter. If you haven't tried out ListAdapter, I suggest you to do so, you will have to rethink a lot of stuffs you have done before and by doing so, I assure your code quality will be improved a lot.
